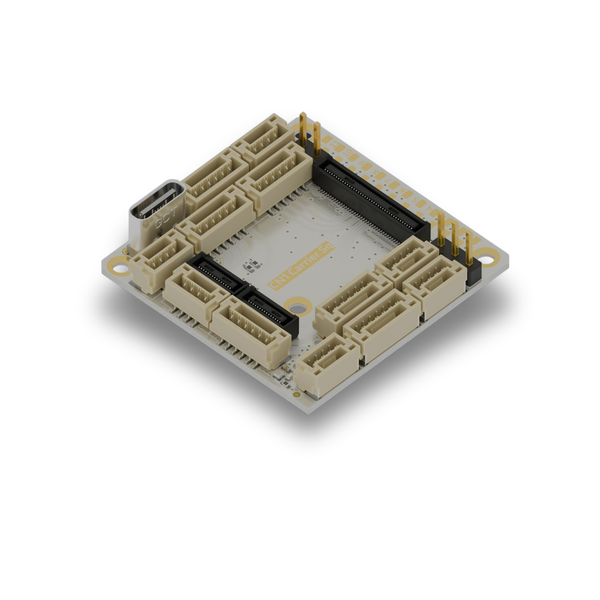

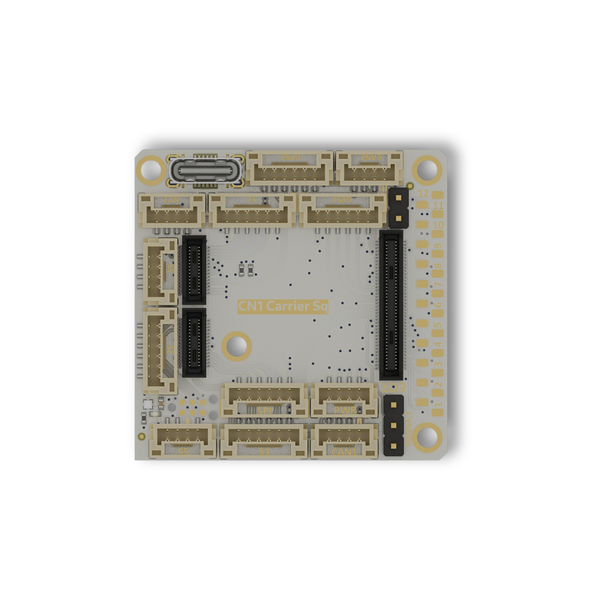

Carrier Board 1 for Control N1 (CN1) – Cuby (R0026) | 3DR
The square form factor Carrier Board 1 for Control N1 (CN1) – Cuby (R0026) is designed to support the Control N1 autopilot in a compact carrier board format for UAV and robotics applications.
Whether used as a standalone module or clustered with other units, the square geometry offers flexibility, consistency, and ease of integration across a wide range of environments.
Built on over 10 years of flight controller design and development experience.
- Baseline Control N1 compatibility without any additional adapters
- Stable Footprint - long term commitment
- Basic power management - single 5V power supply for FC and peripherals
Technical Specifications
Interfaces & Environmental
| Ports with Connectors | 12 × JST-GH (GPS1, GPS2, CAN1, CAN2, SG1, SG2, SG3, SG5, SG6, External SPI, External I²C², Power), 1 x USB-C | Pin Headers | No |
| Ports in Pads | 12 x PWM (BIDIR capable) | Conformal Coating | Not Applied |
Mechanical
| Dimensions (L x W x H) | 38.62 × 38.4 mm (1.52 x 1.51 in) | Weight | 7.18 g (0.25 oz) |
| Screw Pattern | 34.1 x 33 mm (1.34 x 1.30 in) | Screw Size | M3 |
What’s Included
- CN1 CARRIER BOARD “CUBY” - R0026
- 2 x MRC0206 6-Pins JST-GH to 6-Pins JST-GH Cable (150 mm)
- 1 x MRC0235 6-Pins JST-GH to Bare Cable, Tin (200 mm)
- 2 x MRC0205 4-Pins JST-GH to 4-Pins JST-GH (150 mm)
- 1 x MRC0233 4-Pins JST-GH to Bare Cable, Tin (200 mm)
- 1 x 02x12 Pin Headers (2 mm)
- 1 x USB-C Micro Cable (600 mm)
Documentation
Available Products To Purchase With The Board
- Control N1 Autopilot
- Conformal Coating (Contact For Pricing)
Terms & Policies:
Additional Information
| SKU | R0026 | ECCN | EAR99 |
| Material | FR4 PCB | Tariff Code | 8537.10.9170 |
