Carrier Board 3 for Control N1 (CN1) – FPV R0033 UAV flight controller carrier board by 3DR Carrier Board 3 for Control N1 (CN1) – FPV (R0033) angled view showing connectors and PCB layout

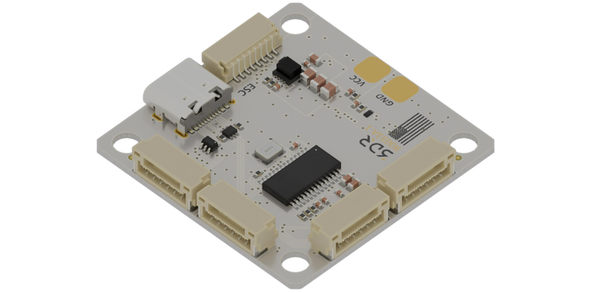

Carrier Board 3 for Control N1 (CN1) – FPV R0033 UAV flight controller carrier board by 3DR

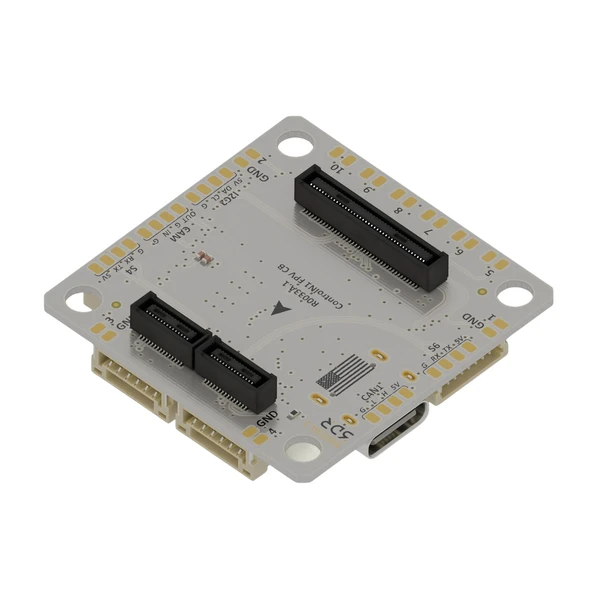

Carrier Board 3 for Control N1 (CN1) – FPV (R0033) angled view showing connectors and PCB layout

Our R0033 Carrier Board 3 brings a classic FPV IC, the 7456 OSD chip, to Control N1 builds. With an up-to-6S regulator, battery leads can be run directly into the carrier board to power the flight controller and other peripherals, making this a simple yet powerful solution for minimal builds.

Built on over 10 years of flight controller design and development experience.





Key Features

  • Analog OSD (7456)
  • 6S direct battery input, no need for external power supply
  • Convenient powered connectors for standard 5V peripherals (GPS, Telemetry, ELRS, etc.)
  • Plug-and-play compatibility, no complex setup—just connect and go

Technical Specifications

Interfaces & Environmental

Ports with Connectors 4 × JST-GH (GPS1, S1, S2, S3), 1 × JST-SH (ESC), 1 × USB-C Pin Headers No
Ports in Pads 10 × PWM (BIDIR capable), CAN, 2 serials, I2C, Camera IN/OUT Conformal Coating Not Applied

Mechanical

Dimensions (L × W × H) 37 × 37 × 8.73 mm (1.46 × 1.46 × 0.34 in) Weight 9.5 g (0.34 oz)
Screw Pattern 30.5 mm × 30.5 mm (1.20 × 1.20 in) Screw Size M3 w/ rubber grommets installed

What’s Included

  • CN1 Carrier Board 3 - R0033
  • 1 × USB-C Cable
  • 4 × MRC0206 6-Pins JST-GH to 6-Pins JST-GH cables (100 mm)

Available Products To Purchase With The Board





Additional Information

SKU R0033 ECCN EAR99
Material FR4 PCB Tariff Code 8537.10.9170
