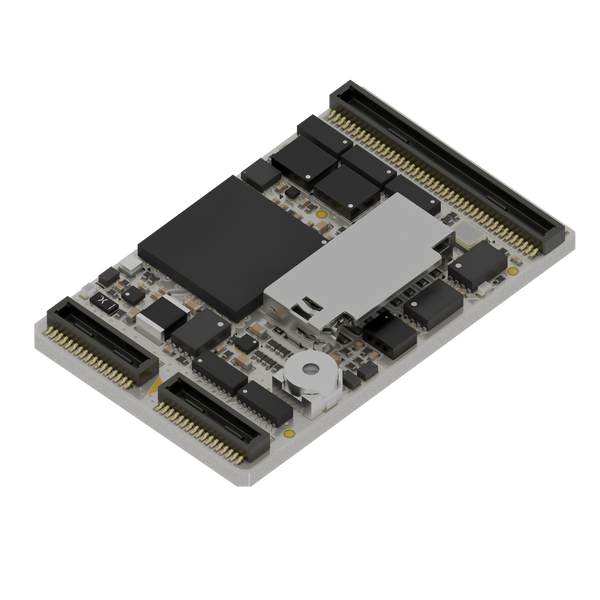

Control N1 (CN1) Autopilot Module – World’s Smallest High-Performance Flight Controller - R0024

Control N1 is the world’s smallest, lightest, and most versatile high-performance autopilot module. Weighing just 2.38 g and measuring 17.6 × 28.15 mm, it delivers ArduPilot and PX4 compatibility in an unbelievably compact footprint.

Powered by an STM32H743 processor with advanced sensor fusion, the CN1 brings commercial-grade flight control to even the most space- and weight-constrained UAV and robotics platforms.

Built on over 10 years of flight controller design and development experience.

View Full Documentation

Key Features

Ultra-Compact & Feather-Light: Ideal for nano-UAVs, small robotics, ROVs, and embedded systems.
Single-Sided PCB Architecture: Reducing manufacturing complexity, improving reliability, and minimizing potential failure points.
Future-Proof Board-to-Board Interface: Hirose DF40 Series connector —RPi CM5-like— , with extra signal pins for custom controller or carrier boards.
Premium Sensor Suite: Dual high-grade sensors, AK09940A magnetometer, and DPS368 barometer—industry-leading performance.
Open-Source Ecosystem: Compatible with ArduPilot and PX4, offering rich tools, and global community resources.
US-Designed & Manufactured: Built in the USA using trusted components from leading manufacturers (Murata, STMicro, TI, NXP) ensuring industrial-grade reliability.

Technical Specifications

Note: Requires firmware changes from previous revisions. Contact us for details.

Core & Processor / Sensors

Main Processor	STM32H743, 1 MB RAM, 2 MB FLASH	IMUs / Sensors	2 × IIM-42653
Software Compatibility	ArduPilot (fully compatible), PX4 (compatible)	Magnetometer	AK09940A
External Memory	8 MB EEPROM	Barometer	DPS368

Interfaces / Electrical Power & Environment

Serial & IO	7 × UART, 1 × SPI, 2 × I²C, 1 × SDIO/SDMMC	Temperature Range	–40°C to +85°C
Other IO	12 x PWM, 4 x Push-Pull direct from MCU, 1x USB-FS, 1 x Pin from onboard LED (chainable), 1x Serial wire debug (SWD), BOOT0 pin	Oscillator	24MHz TCXO
RC Protocols	All supported by flight stacks	Design	Single-sided PCB for robust, compact, scalable architectures
Expansion	Dedicated expansion port for 3DR sensors	Onboard Storage	microSD socket

Mechanical / Environmental & Logistics

Dimensions (L x W x H)	17.6 x 28.15 x 3.8 mm (0.69 x 1.11 x 0.15 in)	Storage	microSD slot 32 GB included or 8 GB industrial (+ $10)
Weight	2.38 g (0.084 oz)	HW Crypto / Hash	Optional
Mounting Holes	None - single-sided module intended for board-to-board mounting	Conformal Coating	Not Applied
Connectors	Amphenol® BergStak® 2 x 30-pin, 1 x 80-pin
