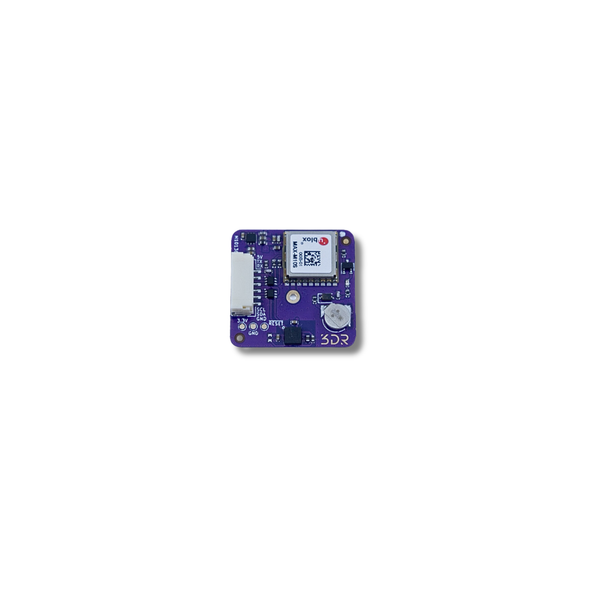

Mini GPS uBlox MAX M10S Mini GPS uBlox MAX M10S
Mini GPS uBlox MAX M10S
Mini GPS uBlox MAX M10S

3DR Mini GPS — M10136

Ultra-Compact u-blox MAX-M10S L1 GNSS with QMC5883L Compass — Smallest & Lightest GPS Solution.

View Full Documentation
⚠ u-blox Code of Conduct Notice: In alignment with the u-blox Code of Conduct, we ask that you confirm products containing u-blox modules will not be used for anything related to weapons before adding to cart. Please accept the consent form prior to purchase.

Overview

The Mini GPS M10136 is our smallest and lightest GNSS module — designed for UAV applications where size and weight are critical. Featuring a u-blox MAX-M10S L1 GNSS receiver and an onboard Isentek IST8310 compass in an ultra-compact form factor.

The module outputs positioning and heading data through a serial interface for seamless integration with compatible flight controllers and embedded systems.

Built on over 10 years of flight controller design and development experience.

Key Features

GNSS Receiver u-blox SAM M10S — L1, GPS/GLONASS/Galileo/BeiDou Magnetometer IST8310 — accurate heading and directional data
Interface Serial — easy integration with flight controllers and embedded systems Weight 8.3 g — lightweight module for size-critical UAV builds
Performance Improved sensitivity and faster positioning — ideal for dynamic UAV applications Form Factor 22.98 × 22.98 × 9.28 mm — our smallest GPS module to date

Technical Specifications

Note: Requires firmware changes from previous revisions. Contact us for details.
GNSS Performance
GNSS Module u-blox M10S
Constellations GPS, GLONASS, Galileo, BeiDou
GNSS Bands L1
RTK Capable No
CAN Capable No
External Antenna No
Sensors
Magnetometer IST8310
Barometer No
LED Yes
Interfaces
Ports with Connectors 1 × JST-GH (GPS)
Ports in Pads PPS/GND signal pads
Electrical & Environment
Operating Temperature –20 to 80 °C
Mechanical
Dimensions (L × W × H) 22.98 × 22.98 × 9.28 mm (0.90 × 0.90 × 0.36 in) Weight 8.3 g (0.29 oz)
Screw Pattern No Material FR4 PCB

What's Included

  • 1 × Mini GPS u-blox MAX M10S (M10136)

Available Accessories

Typical Platforms

Multirotor Fixed-Wing VTOL Rover
Boats Autonomous Tractors Others Any serial-compatible flight controller

Terms & Policies

Additional Information

SKU M10136 ECCN EAR99
Material FR4 PCB Tariff Code 9014.20.4000
Country of Origin USA
