3DR Radio 2 kit

$155.90

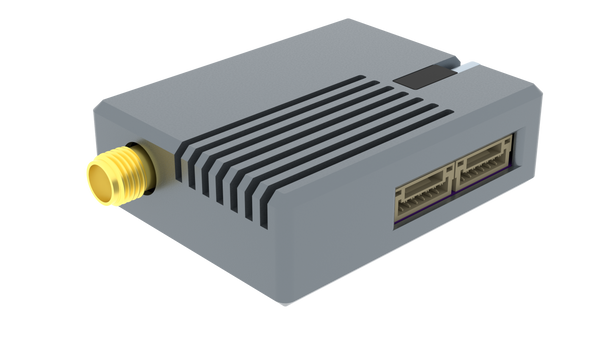

The 3DR Radio 2 is a professional, cost-effective connectivity bridge developed and manufactured by 3DR in collaboration with Nimbus Robotics AI. It enables HaLow (Wi-Fi IEEE 802.11ah) connectivity for drones and robotics applications.

Operating in the Sub-1 GHz band, 3DR Radio 2 offers long-range communication, low power consumption, and strong signal penetration — ideal for industrial, UAS, energy, and robotic applications. Features an RF switch and integrated Power Amplifier (PA) in the SoC, delivering up to 23 ± 2 dBm output power.

The device can be powered through a USB connection or via the +5V and GND pins using any Telemetry port connector.

View Full Documentation

Key Features

Compact Design: Convenient for a wide range of industrial and UAV applications
Versatile Interfaces: USB, Serial, Ethernet, Digital & Analog, Raspberry Pi 40-pin Header (PLUS only)
Seamless Communication: Incorporates MQTT protocol to integrate all interfaces with HaLow wireless functionality
Networking Modes: Access Point (AP) / Station (STA) and mesh networking capabilities
Transceiver Performance: Operates in the Sub-1 GHz ISM band with low power and long-range functionality — receive sensitivity of –107 dBm at MCS10
RF Optimization: Tuned RF interface at 50 ohms
FCC-Certified: Certified output power of up to 23 ± 2 dBm

Technical Specifications

Note: Requires firmware changes from previous revisions. Contact us for details.

Performance / Electrical Power & Environment

Radio Module	Wi-Fi HaLow (IEEE 802.11ah)	Maximum Output Power	23 ± 2 dBm
Frequency Band	Sub-1 GHz	Input Voltage	5V
Networking Modes	AP (Access Point), STA (Station)	Receive Sensitivity	Up to –107 dBm (MCS10)
Firmware	Proprietary, open bootloader, vendor SDK

Interfaces / Mechanical

Ports with Connectors	2 × JST-GH 1 × USB-C Ethernet	Dimensions (L × W)	44.5 × 35 mm (1.75 × 1.38 in)
Protocol Support	MAVLink, TCP, UDP	Height (w/o Antenna)	13.8 mm (0.54 in)
Weight	8.7 g (0.31 oz)
Case	Aluminum (25 g total)
