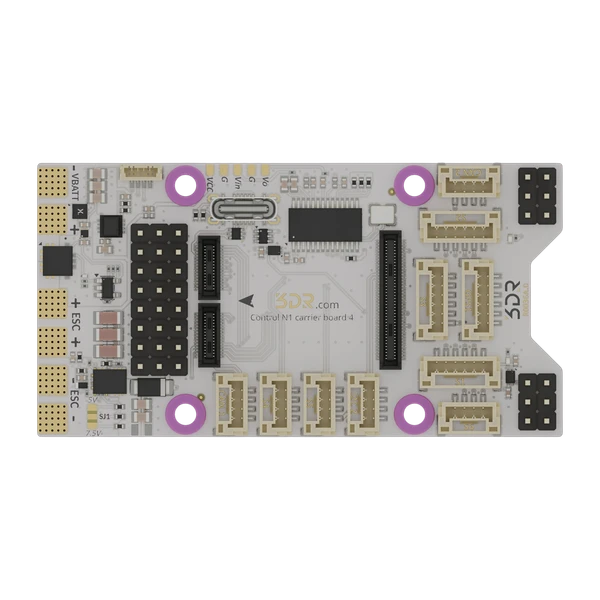

Carrier Board 4 for Control N1 – WING (R0036) | 3DR
Our R0036 Carrier Board 4 is built for fixed-wing UAV platforms, providing integrated ESC power distribution with onboard BECs and support for up to two ESCs. With OSD output and a universally mountable form factor, it delivers a simple and efficient solution for fixed-wing builds.
Built on over 10 years of flight controller design and development experience.
For the full documentation, please click the link below.
View Full DocumentationKey Features
- Universal mounting standard for fixed-wing airframes
- Dual ESC support with onboard BEC circuitry
- OSD output for analog video feed (voltage, speed, altitude, etc.)
- Selectable PWM logic level (5V or 7.5V)
Technical Specifications
Interfaces & Environmental
| Ports with Connectors | 11 × JST-GH (GPS1, CAN 1, CAN 2, S1-S6, External I²C2), 1x JST-SH (ESC), 1 x USB-C | Pin Headers | No |
| Ports in Pads | 12 x PWM (BIDIR capable) | Conformal Coating | Not Applied |
Mechanical
| Dimensions (L x W x H) | 70 x 36.5 x 11.54 mm (2.76 x 1.44 x 0.45 in) | Weight | Coming Soon |
| Screw Pattern | 30.5 mm x 30.5 mm (1.20 x 1.20 in) | Screw Size | M3 w/ rubber grommets installed |
What’s Included
- CN1 Carrier Board 4 - R0036
- 1 × USB-C Cable
- 2 × MRC0206 6-Pins JST-GH to 6-Pins JST-GH cables (150 mm)
- 1 × MRC0235 6-Pins JST-GH to Bare Cable, Tin (200 mm)
- 4 × MRC0205 4-Pins JST-GH to 4-Pins JST-GH (150 mm)
- 1 × MRC0233 4-Pins JST-GH to Bare Cable, Tin (200 mm)
- 1 × 03X8 Pin Headers (2.54mm)
- 2 × 03X2 Pin Headers (2.54mm)
Available Products To Purchase With The Board
- Control N1 Autopilot
- Conformal Coating (Contact For Pricing)
Terms & Policies:
Additional Information
| SKU | R0036 | ECCN | EAR99 |
| Material | FR4 PCB | Tariff Code | 8537.10.9170 |
