Prototyping Board for N1 - R0037 | 3DR

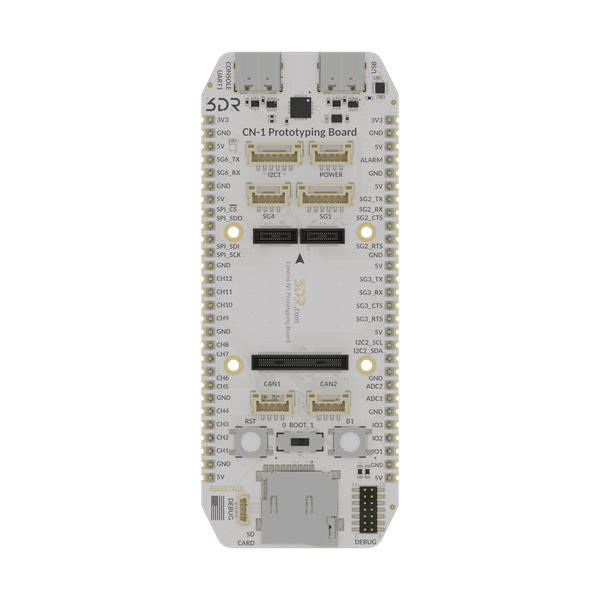

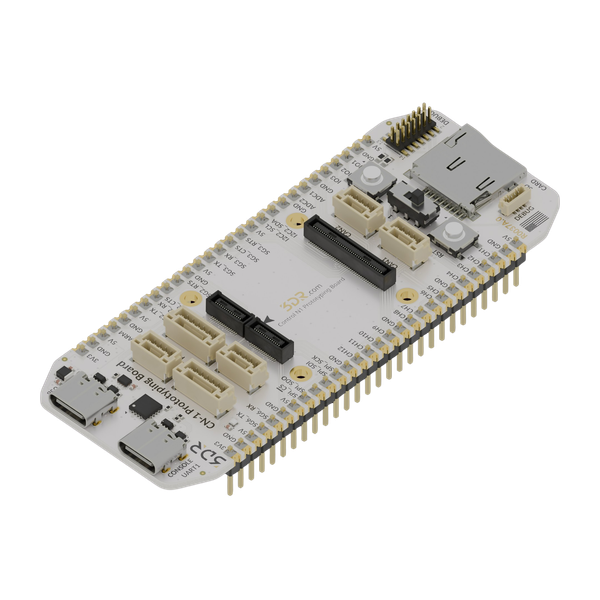

Our R0037 Prototyping Board is designed to accelerate hardware development for the Control N1 by removing the constraints of a production carrier board. It provides full access to CN1 signals, making it ideal for evaluating sensors and peripherals before committing to a custom carrier board layout.
Built on over 10 years of flight controller design and development experience.
For the full documentation, please click the link below.
View Full DocumentationKey Features
- Breadboard-compatible design for tool-free prototyping
- Full pin breakout for access to all CN1 signals
- Dual debug cable interfaces for programming
Technical Specifications
Interfaces & Environmental
| Ports with Connectors | 6 × JST-GH (CAN 1, CAN 2, S1-S6, External I²C, Power, SG1, SG4), 1 x USB-C, USB-C (Console UART), RST & B1 (Push Buttons), Boot Switch | Pin Headers | No |
| Ports in Pads | 12 x PWM (BIDIR capable) | Conformal Coating | Not Applied |
Mechanical
| Dimensions (L x W x H) | 95 x 37.73 x 9.64 mm (3.74 x 1.49 x 0.38 in) | Weight | Coming Soon |
| Screw Pattern | 30.5 mm x 30.5 mm (1.20 x 1.20 in) | Screw Size | M2.5 w/ rubber grommets installed |
What’s Included
- 1 × CN1 Prototyping Board (R0037)
- 1 × USB-C Cable (600 mm)
- 2 x MRC0206 6-Pins JST-GH to 6-Pins JST-GH Cables (150 mm)
- 1 × MRC0235 6-Pins JST-GH to Bare Cable, Tin (200 mm)
- 4 × MRC0205 4-Pins JST-GH to 4-Pins JST-GH (150 mm)
- 1 × MRC0233 4-Pins JST-GH to Bare Cable, Tin (200 mm)
Available Products To Purchase With The Board
- Control N1 Autopilot
- Conformal Coating (Contact For Pricing)
Terms & Policies:
Additional Information
| SKU | R0037 | ECCN | EAR99 |
| Material | FR4 PCB | Tariff Code | 8537.10.9170 |
