Upgrade your navigation system with the next generation of the uBlox SAM GPS module, now integrated with the IST8308 magnetometer. This medium-sized GPS module offers enhanced sensitivity and performance, making it a reliable choice for precise positioning and orientation in UAV and other applications.

Key Features:

• Advanced IST8308 Magnetometer: The IST8308 replaces the older IST8310 and LIS3MDL sensors, providing improved sensitivity, reduced temperature drift, and built-in noise filtering. This ensures more accurate and stable compass readings.
• uBlox SAM M8Q GPS Module: Leveraging the powerful uBlox SAM M8Q receiver, this module supports multi-constellation GNSS for robust and precise location tracking.
• Additional Functionalities: Includes PPS/GND signal pads for synchronization, a rechargeable coin battery for memory backup, and a status LED for operational feedback.
• Standard Connectivity: Equipped with a 6-pin JST-GH connector supporting both GPS and I2C interfaces, facilitating easy integration with a variety of systems.
• Compact Design: Medium-sized at 30mm x 30mm x 11.5mm, it balances performance with a manageable form factor suitable for various platforms.

What’s Included:

• 1x uGPS uBlox SAM M8Q: High-performance GPS module.
• 1x 6-Pin JST-GH to 6-Pin JST-GH Cable (MRC0206): For easy and secure connections.

JST-GH Pinout Information:

• Detailed pinout information for the JST-GH connector is available in the product documentation.

Typical Applications:

• UAV Systems: Ideal for drones requiring precise GNSS and compass capabilities.
• Robotics: Perfect for robots that need accurate navigation and orientation data.
• Navigation Systems: Suitable for any application requiring reliable and precise positioning.

Specifications:

• Dimensions: 30mm x 30mm x 11.5mm
• Connector: 6-Pin JST-GH for GPS and I2C

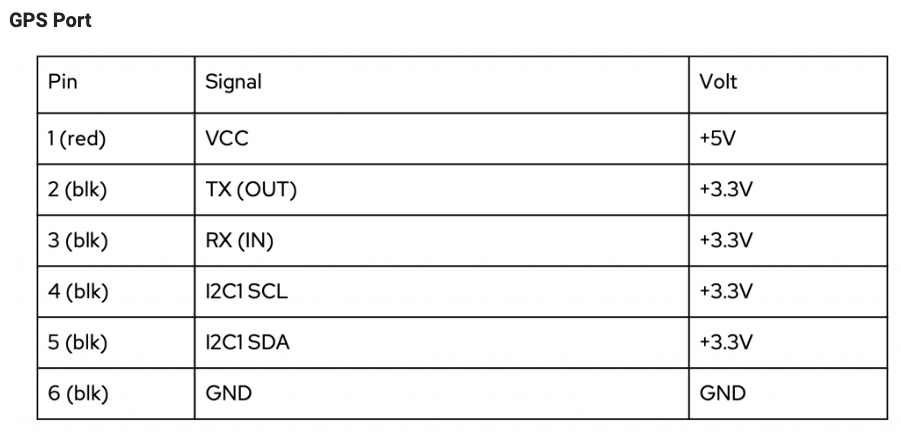

JST-GH Pin out information:

More Information:

Documentation
