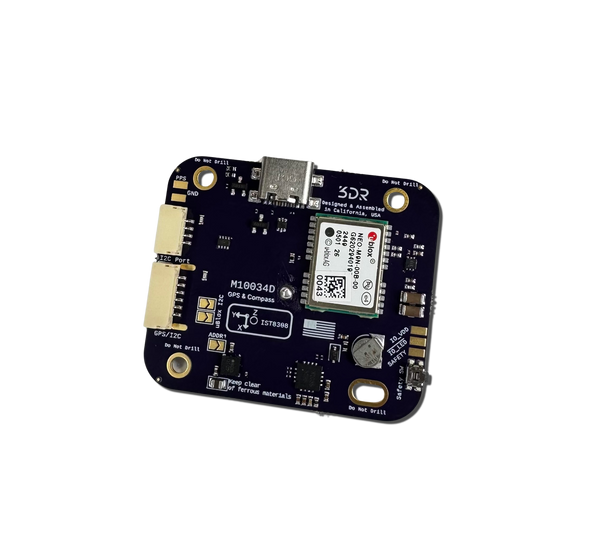

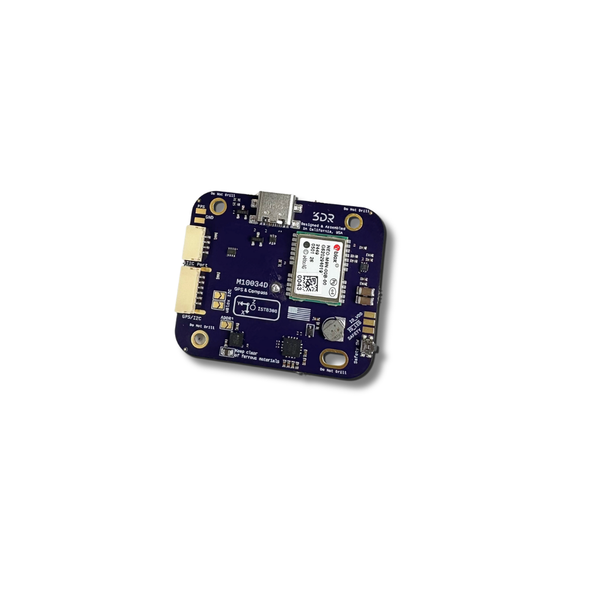

Extremely powerful GPS + Compass system capable of using multiple constellations at the same time for super accurate position and heading. The NEO-M9N supports concurrent reception of four GNSS, providing exceptional sensitivity and acquisition times for all L1 GNSS systems. The high number of visible satellites enables the receiver to select the best signals — maximizing position accuracy, particularly in challenging conditions such as deep urban canyons.

The IST8308 compass provides high output data rate, ultra-low noise, ultra-low hysteresis, and excellent temperature drift performance — ideal for high-accuracy applications.

Built on over 10 years of flight controller design and development experience.



View Full Documentation
⚠ u-blox Code of Conduct Notice: In alignment with the u-blox Code of Conduct, we ask that you confirm products containing u-blox modules will not be used for anything related to weapons before adding to cart. Please accept the consent form prior to purchase.

Key Features

  • u-blox NEO-M9N GNSS — GPS, GLONASS, Galileo, BeiDou concurrent reception built on the robust u-blox M9 chip

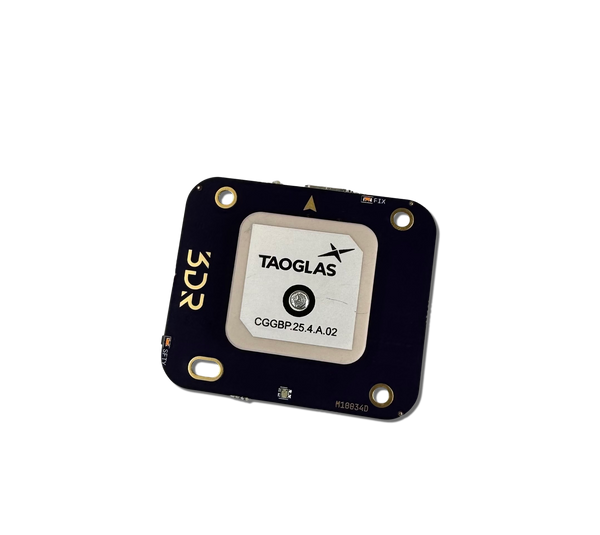

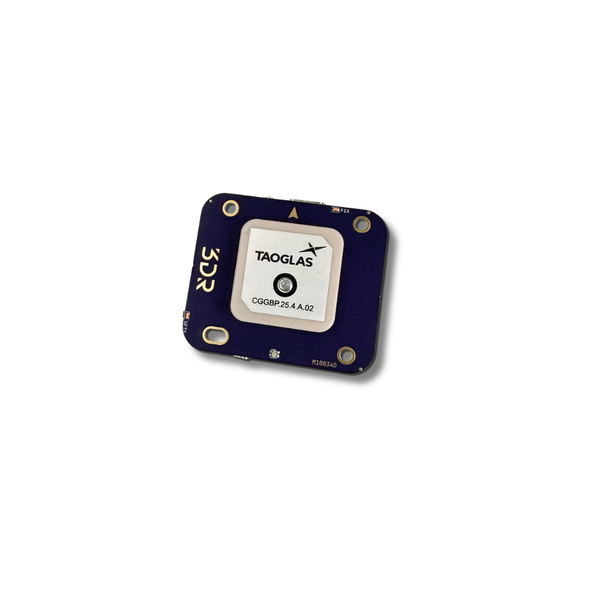

  • Latest Taoglas antenna tuned for GPS, GLONASS, Galileo, and BeiDou constellations
  • Integrated IST8308 compass — ultra-low noise, ultra-low hysteresis, excellent temperature drift performance
  • USB port, GPS port, and I²C port for versatile connectivity
  • RGB LED driver (IS31FL3195) and onboard Safety Switch
  • Designed for DroneCAN / UAV / CAN platforms

Technical Specifications



GNSS Performance / Sensors

GNSS Module u-blox NEO-M9N Magnetometer IST8308
Constellations GPS (USA)
GLONASS (Russia)
Galileo (Europe)
BeiDou (China)		 Barometer No

Interfaces / Electrical Power & Environment

Ports with Connectors 2 × JST-GH (GPS, I²C Port)
1 × USB-C
1 × u-blox NEO-M9N
Safety Switch		 Operating Temperature –20 to 80°C
Ports in Pads PPS pad for easy access LED RGB LED driver (IS31FL3195)
GNSS Bands L1 RTK Capable No
CAN Capable No External Antenna No
Antenna Taoglas antenna tuned for GPS, GLONASS, Galileo, and BeiDou constellations

Mechanical

Dimensions (L × W × H) 47 × 41 × 9.3 mm (1.85 × 1.61 × 0.37 in) Weight 16.5 g (0.58 oz)
Screw Pattern 32 × 33 mm (1.26 × 1.30 in) Screw Size M2.5
Ground Plane 40 × 47 mm (1.57 × 1.85 in) Material FR4 PCB
Country of Origin USA

What's Included

  • 1 × GPS u-blox NEO-M9N (M10034)

Available Accessories

  • MRC0206 — 6-Pin JST-GH to 6-Pin JST-GH Cable

Typical Platforms

Multirotor Fixed-Wing VTOL Rover
Boats Autonomous Tractors Others Any ArduPilot / PX4 compatible platform

Additional Information

SKU M10034 ECCN EAR99
Material FR4 PCB Tariff Code 9014.20.4000
Country of Origin USA Current Revision D
