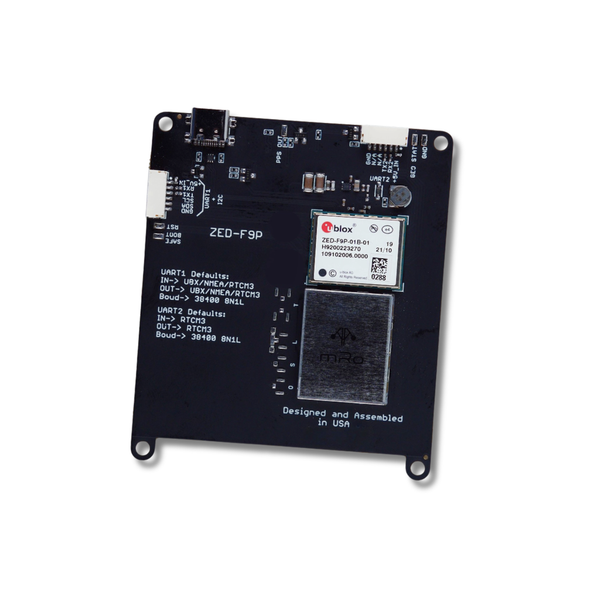

GPS u-Blox ZED-F9 RTK L1/L2

$410.90

The ZED-F9 GPS is the most precise GPS available, capable of achieving up to 2 cm precision under the right conditions. This high-performance device can simultaneously use all major constellations, including the more precise L2 band.

We believe this is the best GPS in the market that you can possibly buy at this price point.

Built on over 10 years of flight controller design and development experience.

View Full Documentation

⚠ u-blox Code of Conduct Notice: In alignment with the u-blox Code of Conduct, we ask that you confirm products containing u-blox modules will not be used for anything related to weapons before adding to cart. Please accept the consent form prior to purchase.

Key Features

u-blox ZED-F9 RTK GNSS receiver — L1/L2 dual-frequency
RTK ready for centimeter-level precision (up to 2 cm under ideal conditions)
Proprietary RF stage for high gain and noise immunity
Eliminates signal loss from u.Fl/SMA connectors and long antenna cables
70 × 70 mm RF ground plane for maximum signal performance
Compatible with ArduPilot and PX4 flight stacks

Technical Specifications

GNSS Performance / Sensors

GNSS Module	ZED-F9P-0x-B	Magnetometer	No
Constellations	GPS (L1/L2) GLONASS (L1/L2) Galileo BeiDou	Barometer	No
Software Compatibility	ArduPilot, PX4

Interfaces / Electrical Power & Environment

Ports with Connectors	2 × JST-GH (GPS, UART2) 1 × USB-C	Operating Temperature	–20 to 80°C
Ports in Pads	PPS/GND signal pads	LED	Yes
Peripherals	XPC240 series module	GNSS Bands	L1, L2
RTK Capable	Yes	CAN Capable	No
External Antenna	No

Mechanical

Dimensions (L × W × H)	81.2 × 70 × 12.7 mm (3.20 × 2.76 × 0.50 in)	Weight	54.5 g (1.92 oz)
Screw Pattern	75.5 × 63.9 mm (2.97 × 2.52 in)	Screw Size	M3
Ground Plane	70 × 70 mm (2.76 × 2.76 in)	Material	FR4 PCB
Country of Origin	USA
