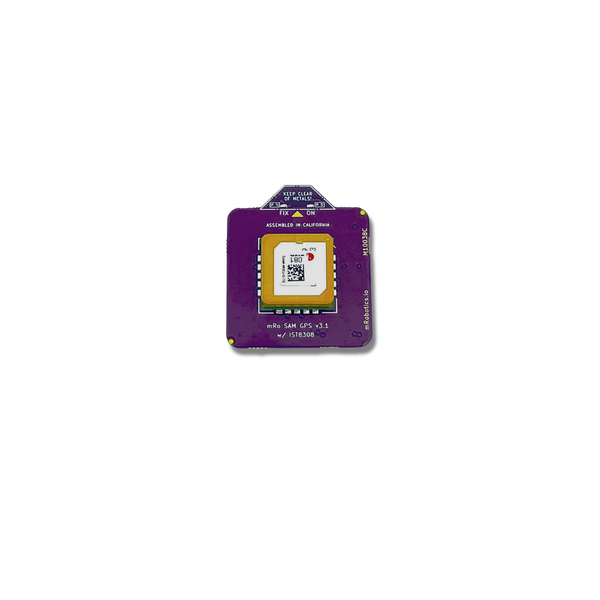

SAM GPS + IST8308 Mag (Medium Size)

$76.90

Upgrade your navigation system with the next generation of the u-blox SAM GPS module, now integrated with the IST8308 magnetometer. This medium-sized GPS module offers enhanced sensitivity and performance, making it a reliable choice for precise positioning and orientation in UAV and other applications.

Built on over 10 years of flight controller design and development experience.

View Full Documentation

⚠ u-blox Code of Conduct Notice: In alignment with the u-blox Code of Conduct, we ask that you confirm products containing u-blox modules will not be used for anything related to weapons before adding to cart. Please accept the consent form prior to purchase.

Key Features

u-blox SAM M8Q GNSS with advanced IST8308 magnetometer
Improved compass accuracy with reduced temperature drift and built-in noise filter

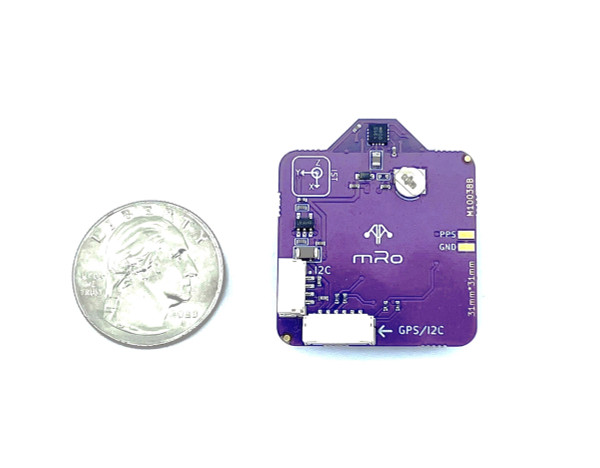

PPS/GND signal pads and status LED for easy integration
Standard JST-GH GPS/I²C connector for easy integration with a variety of systems
Medium-sized at 36 × 31 × 11.3 mm — balances performance with a manageable form factor for various platforms

Technical Specifications

GNSS Performance / Sensors

GNSS Module	u-blox SAM M8Q	Magnetometer	IST8308
Constellations	GPS, GLONASS, Galileo, BeiDou (can be enabled)	Barometer	No

Interfaces / Electrical Power & Environment

Ports with Connectors	2 × 6-Pin JST-GH (GPS, I²C Port)	Operating Temperature	–20 to 80°C
Ports in Pads	PPS/GND signal pads	LED	Yes
GNSS Bands	L1	RTK Capable	No
CAN Capable	No	External Antenna	No

Mechanical

Dimensions (L × W × H)	36 × 31 × 11.3 mm (1.42 × 1.22 × 0.44 in)	Weight	8.3 g (0.29 oz)
Screw Pattern	None	Screw Size	None
Ground Plane	31 × 31 mm (1.22 × 1.22 in)	Material	FR4 PCB
Country of Origin	USA
