ZED-F9P External antenna

$449.90

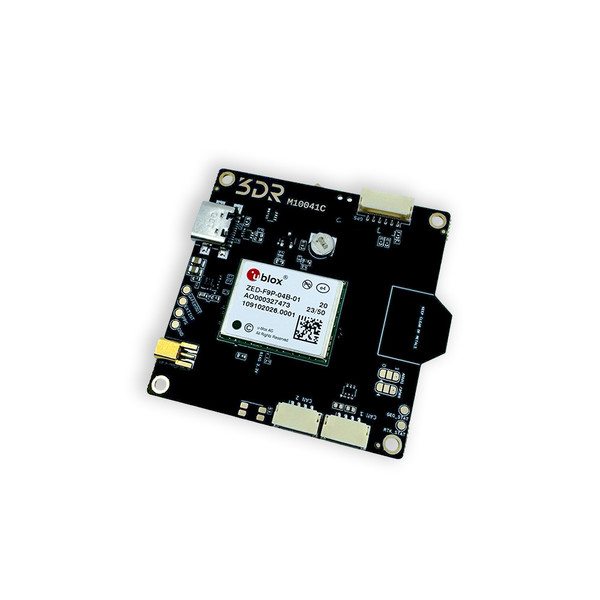

Achieve centimeter-level positioning with the ZED-F9P Navigator Pro RTK GNSS receiver, featuring an external antenna with MMCX connector for optimal signal reception. This robust module includes the RM3100 compass and a CAN node, enhancing connectivity and navigational precision across various applications.

Available in two options: the L1/L2 (ZED-F9P-04B) for general high-accuracy positioning, and the L1/L5 (ZED-F9P-15B) for even greater precision and reliability in challenging environments.

Built on over 10 years of flight controller design and development experience.

View Full Documentation

⚠ u-blox Code of Conduct Notice: In alignment with the u-blox Code of Conduct, we ask that you confirm products containing u-blox modules will not be used for anything related to weapons before adding to cart. Please accept the consent form prior to purchase.

Key Features

u-blox ZED-F9P with advanced RM3100 magnetometer for superior heading accuracy
External antenna support via MMCX connector for enhanced signal quality and reliability
Dual frequency options — L1/L2 (ZED-F9P-04B) or L1/L5 (ZED-F9P-15B) to suit specific application requirements
CAN Node integration (DroneCAN) for seamless communication within networked systems
Ideal for high-precision navigational tasks in UAVs, robotics, and surveying equipment
Compatible with ArduPilot and PX4 flight stacks

Technical Specifications — Revision C

GNSS Performance / Sensors

GNSS Module	ZED-F9P-04B (L1/L2) ZED-F9P-15B (L1/L5)	Magnetometer	RM3100
Constellations (L1/L2)	GPS (L1/L2) GLONASS (L1/L2) Galileo (E1/E5b) BeiDou (B1/B2)	Barometer	No
Constellations (L1/L5)	GPS (L1/L5) GLONASS (L1) Galileo (E1/E5a) BeiDou (B1/B2a)	RTK Capable	Yes

Interfaces / Electrical Power & Environment

Ports with Connectors	3 × JST-GH (GPS, CAN1, CAN2) 1 × USB-C	Operating Temperature	–20 to 80°C
GNSS Bands	L1/L2 or L1/L5	LED	Yes
CAN Capable	Yes (DroneCAN)	External Antenna	SMA and u.FL available
