$145.90

AUAV-L10D-M25125

Advanced Airspeed & Barometric Measurement for High-Performance UAV Platforms.

View Full Documentation

Overview

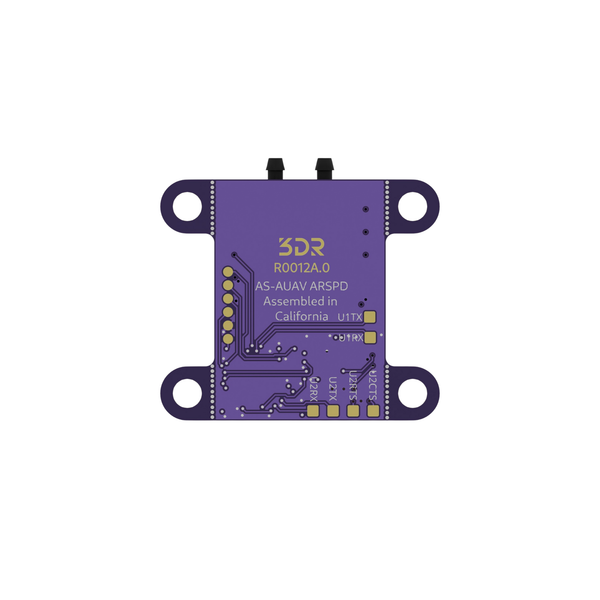

Featuring the advanced All Sensors' AUAV differential sensor technology, this sensor delivers significantly higher resolution, an expanded measurement range, and improved linearity. The AUAV-Lx0D-M25125 is a next-generation, CAN-based 2-in-1 airspeed and barometer sensor engineered for demanding UAV and aerospace applications.

With native DroneCAN support, an integrated barometer, and full compatibility with ArduPilot and PX4, this unit provides exceptional accuracy, reliability, and integration simplicity for both fixed-wing and VTOL platforms.

Key Features

➤

High-Resolution Differential Pressure Sensing

MEMS-based differential pressure sensor provides high resolution and excellent low-speed sensitivity for precise airspeed measurement.

➤

Wide Measurement Range

Expanded pressure range prevents saturation at high airspeeds while maintaining accuracy during low-speed flight and landing phases.

➤

Integrated Barometer

Onboard barometric pressure sensing enables redundant altitude data and improves estimator performance in ArduPilot and PX4.

➤

DroneCAN Architecture

Plug-and-play DroneCAN integration provides robust, noise-immune communication suitable for modern distributed avionics architectures.

➤

USA-Made, High-Reliability Construction

Designed and manufactured in the United States for long-term reliability in demanding environments.

Device Specifications

Protocol	DroneCAN
Interface	CAN Bus
Connector	4-pin JST-GH
Operating Voltage	4.5 V – 40 V
Firmware Target	3DR-L431-ASAUAV
Country of Origin	USA

Sensor Specifications

Differential Pressure Range	±10 inH₂O (±2490 Pa), other ranges available on request
Absolute Pressure Range	250 – 1250 mbar
Accuracy	TEB < 0.65%
Resolution	24-bit
Operating Temperature	-40 °C to 85 °C

Package Includes

AUAV-L10D-M25125-RR-N Airspeed Sensor
MRC0205 4-Pins JST-GH to 4-Pins JST-GH Cable (150 mm)

Options

Pitot tube set:

Silicone airspeed tubing — 2 feet (61 cm) of highly flexible, clear PVC tubing. Non-absorbing with a Durometer rating of 65A, making it ideal for maintaining stability and accuracy in airspeed measurements.
Pitot tube — a robust and lightweight tube essential for detecting dynamic air pressure and determining airspeed.

Need a different pressure range? Additional pressure ranges are available upon request. Contact us for availability and lead times.

If a longer cable is required, you can purchase the MRC0220 4-PIN JST-GH to 4-PIN JST-GH cable in 300 mm or 600 mm lengths.
